Scale Drawing & Line Weight

Converted a plan and an elevation from scale 1:100 to 1:75~ Took me quite sometime to complete it but it was kinda fun turning the scale ruler over and over again~ xD

(p/s: scale rulers are really helpful~ xD)

Not only that, we were also taught about line weight. Outermost lines or the part where we cut got to have the thickest line as indication. Details in the inside on the other hand, got to be drawn using a thinner pen. Line weights are important in these drawings to show the relation between the building structures and details.

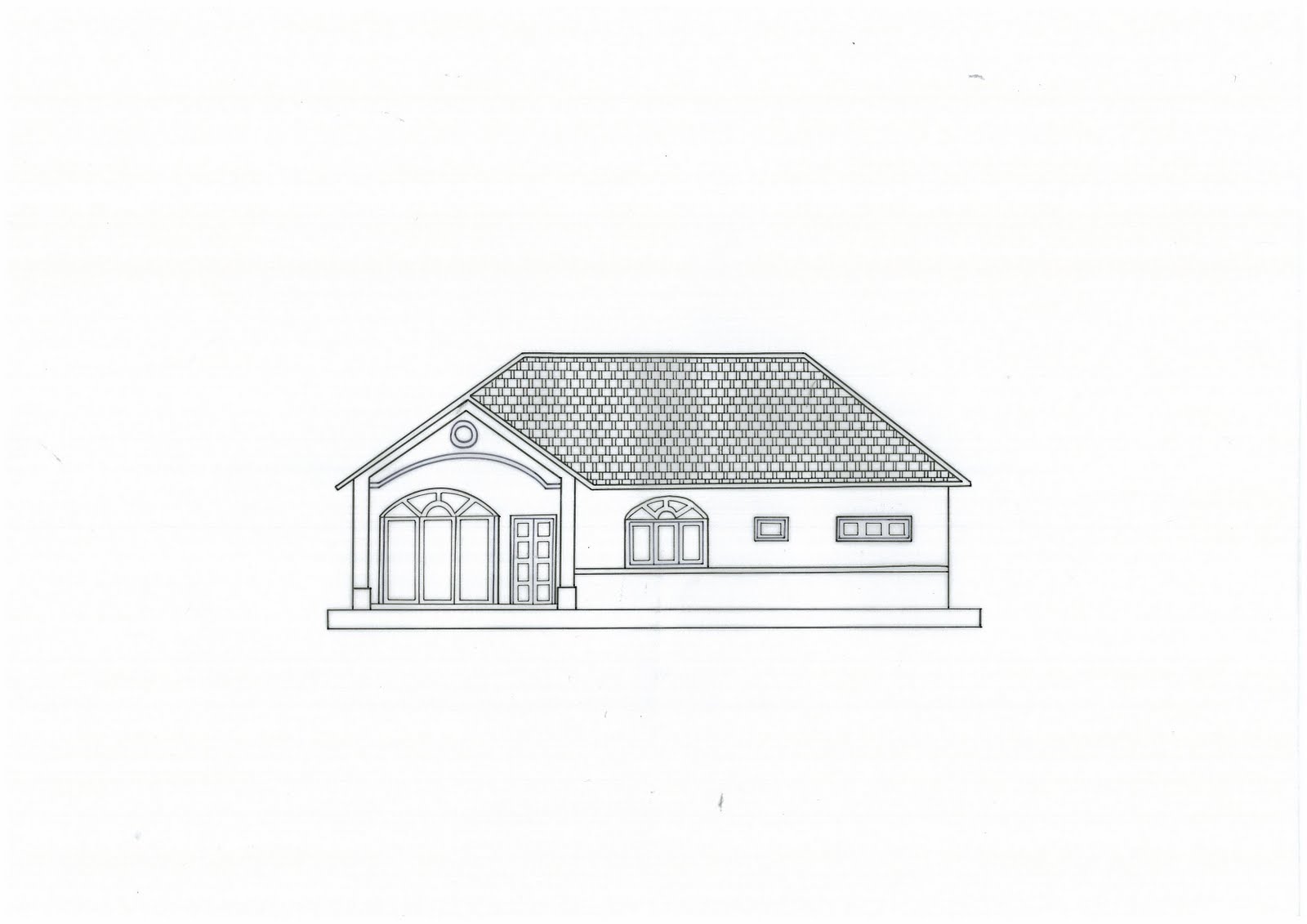

Here it is, my completed work :
